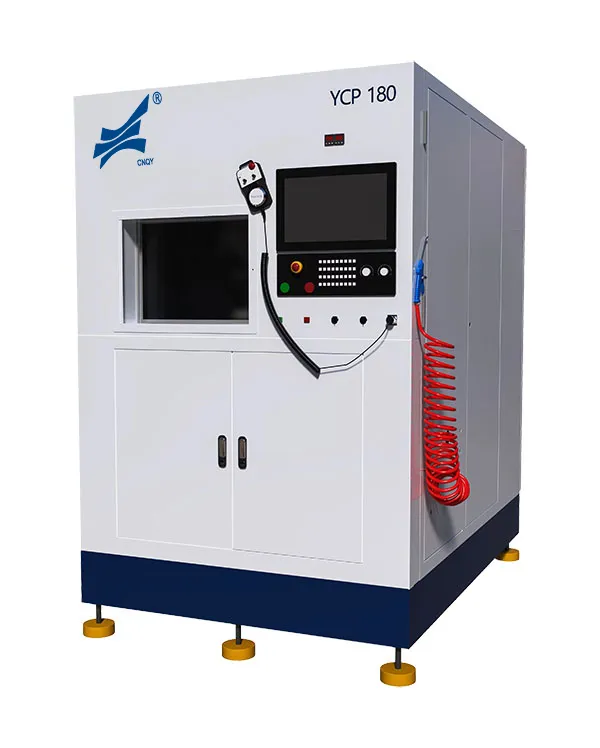

The QNCYYCP-180 Vertical 3-Axis CNC Optical Polishing Machine is a high-precision surface finishing solution designed for optical surface processing, spherical surface polishing, aspherical surface polishing, lens finishing, optical mirror polishing, mold surface polishing, and precision curved surface finishing. With a vertical machine structure and 3-axis CNC control system, this machine provides stable movement, accurate polishing paths, smooth surface quality, and repeatable processing performance.
This CNC optical polishing machine is suitable for processing optical lenses, glass components, spherical parts, aspherical parts, optical mirrors, precision molds, curved surfaces, and high-accuracy functional components. It can help reduce grinding marks, improve surface smoothness, enhance optical surface quality, and support fine finishing after grinding or precision machining.
The vertical structure provides convenient operation and stable workpiece positioning. The 3-axis CNC control system allows operators to set polishing path, polishing speed, feed rate, processing time, tool pressure, and other process parameters according to different workpiece shapes and surface requirements. This helps improve polishing consistency and reduce manual operation errors.
Product Introduction
|
QYCNYCP-180 a vertical polisher with 3 CNC axis. Chinese, English, and German are available for operator. Easy to run, keep going after set up all the data, a perfect polisher for multiple and small quantity lenses.
|
|
CNC System:
The machine bases on Rexroth (Germany) CNC (Computer Numerical Control) System and all the driving motors, that keeps machines stable and reliable.
|
|
Feedback System:
The machines use linear scale from FAGOR Spanish for X-axis, and Z-axis. The resolution of this linear scale is 0.1μm. An angle scale from Renishaw UK used on B-axis, and resolution is 1 arc second. All these keep the machine in high accuracy and reliable.
|
|
Machine Base:
1.The machine base on natural granite, low deformation with the temperature.
2.All the driving parts such as linear guide and ball screw are from HIWIN Taiwan. Meet all the accuracy which designed, and keep the machine in high accuracy and reliable
3.All the bearings for rotating parts are from FAG Germany, keep the rotate accuracy less than 3μm.
|
|
Polishing Slurry Supply System:
The chiller is used for polishing slurry system, to keep the spindle and slurry working in the certain temperature. Keeps the polishing slurry in good condition.
|
FAQ
1. What is the QNCYYCP-180 CNC Optical Polishing Machine used for?
It is mainly used for optical surface processing, spherical surface polishing, aspherical surface finishing, lens polishing, mirror polishing, mold polishing, and curved surface finishing.
2. What are the advantages of a vertical CNC polishing machine?
A vertical structure offers convenient operation, stable workpiece positioning, compact layout, and reliable processing stability for precision surface finishing.
3. What does the 3-axis CNC system do?
The 3-axis CNC system controls polishing tool movement, polishing path, feed rate, processing speed, and other parameters to improve repeatability and surface consistency.
4. What materials can this machine polish?
It can polish optical glass, quartz, crystal materials, ceramics, mold steel, non-ferrous metals, and other precision materials depending on tools, abrasives, fixtures, and polishing process.
5. Is this machine suitable for aspherical surfaces?
Yes. The 3-axis CNC control system can support controlled polishing paths for aspherical surfaces, curved surfaces, and precision optical components.
6. Can it be used after grinding?
Yes. It is suitable for fine polishing after grinding, milling, or precision machining. It helps remove surface marks and improve final surface quality.
7. What information is needed for quotation?
Please provide workpiece material, size, surface type, spherical or aspherical requirement, required surface quality, production quantity, polishing process, and preferred machine configuration.
